Gun misfires
keeping you down?

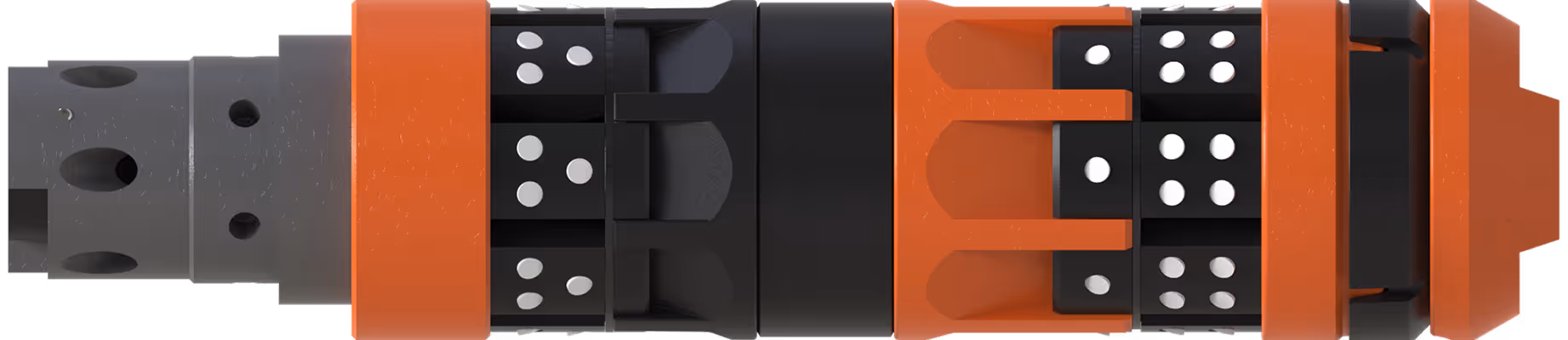

Introducing

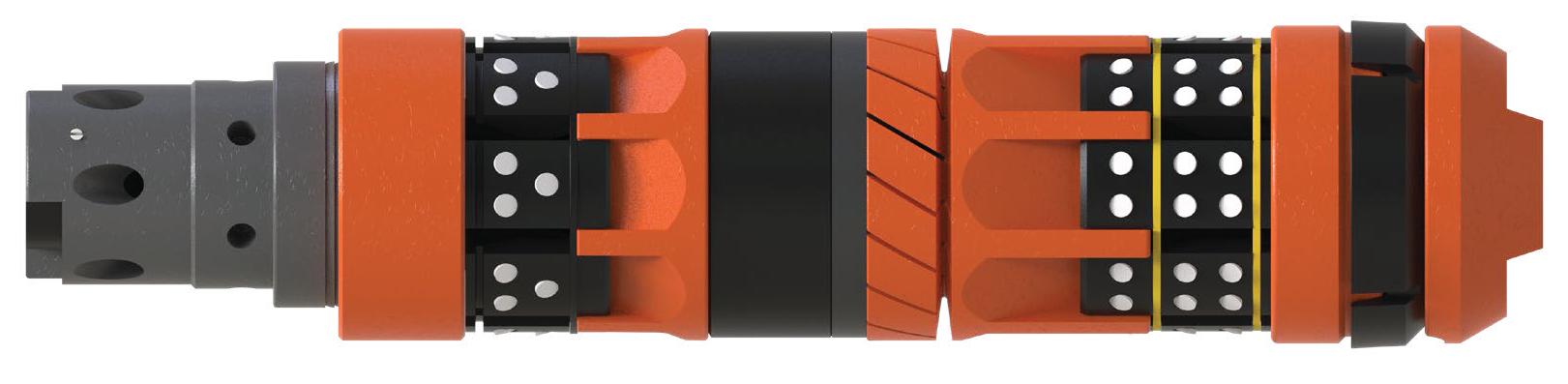

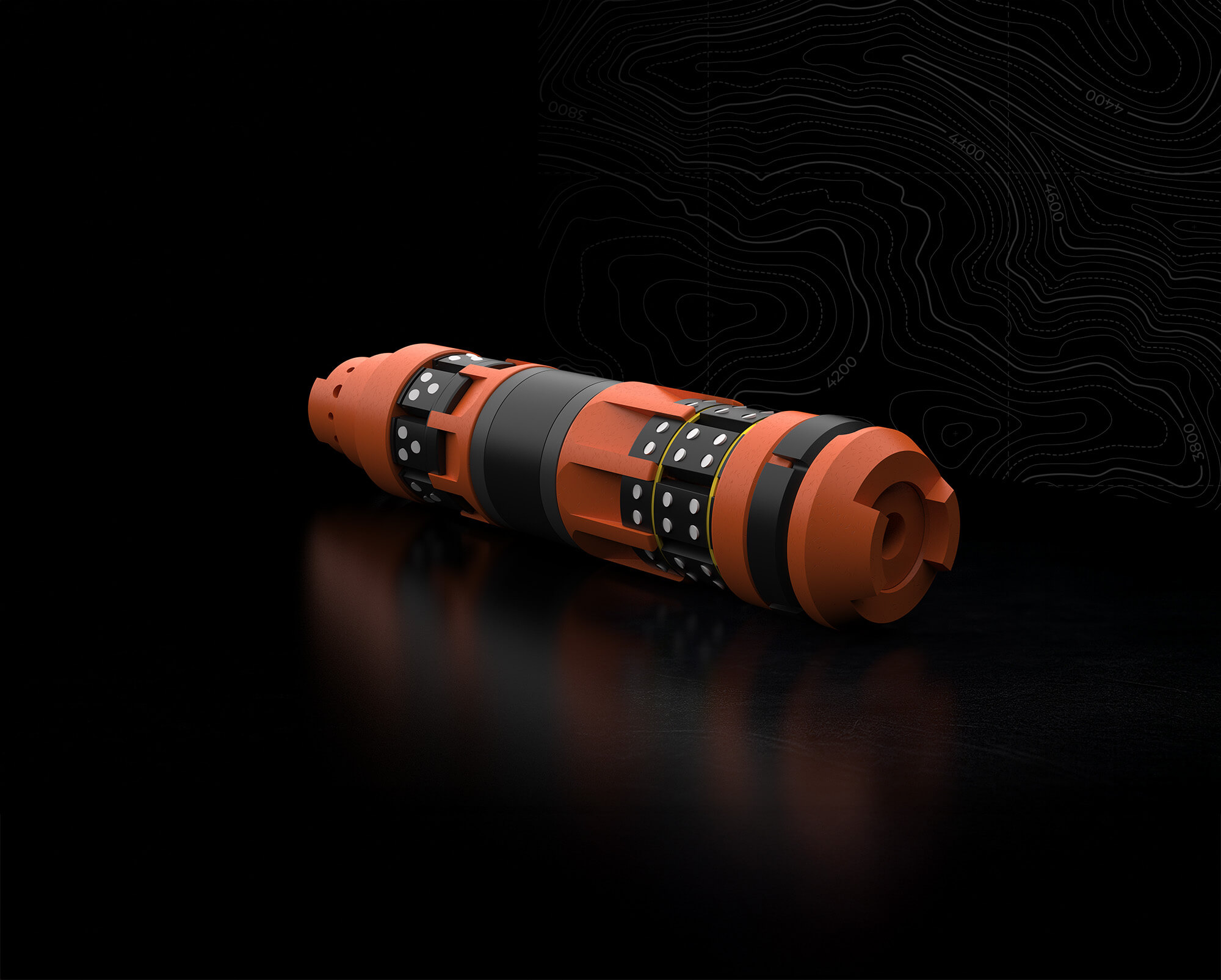

MAX

01
INFIL Technology

The Reaper MAX innovative patent-pending INFIL technology removes the risk associated with “ball in place” misfires and recovers efficiencies lost during ball drop operations.

02
Forget ball-catch!

Say goodbye to ball catch operations and the inefficiencies associated with them.

03
All Composite

All composite plug allows for fast drill out times, ~6-8 minute average with no motor.

04
Best Slip Design

Upper and Lower Slip designed to deter presets while running in hole. Slip design ensures consistent break force.

05
Element Design

Ensures maximum pack off when setting the plug.

06
Hybrid Composite Zirconia Buttons

Reaper's innovative button selection ensures zero slip performance while leaving no metal content in the well during drill outs.

DATA SHEET
Casing Size (in.)
5-1/2
Weight (lbs.)
17-23
Tool OD (in.)
4.30
Tool ID (in.)
1.00
Tool OAL (in.)
19.00
Temp (Max F)
250
Pressure (psi)
10,000
